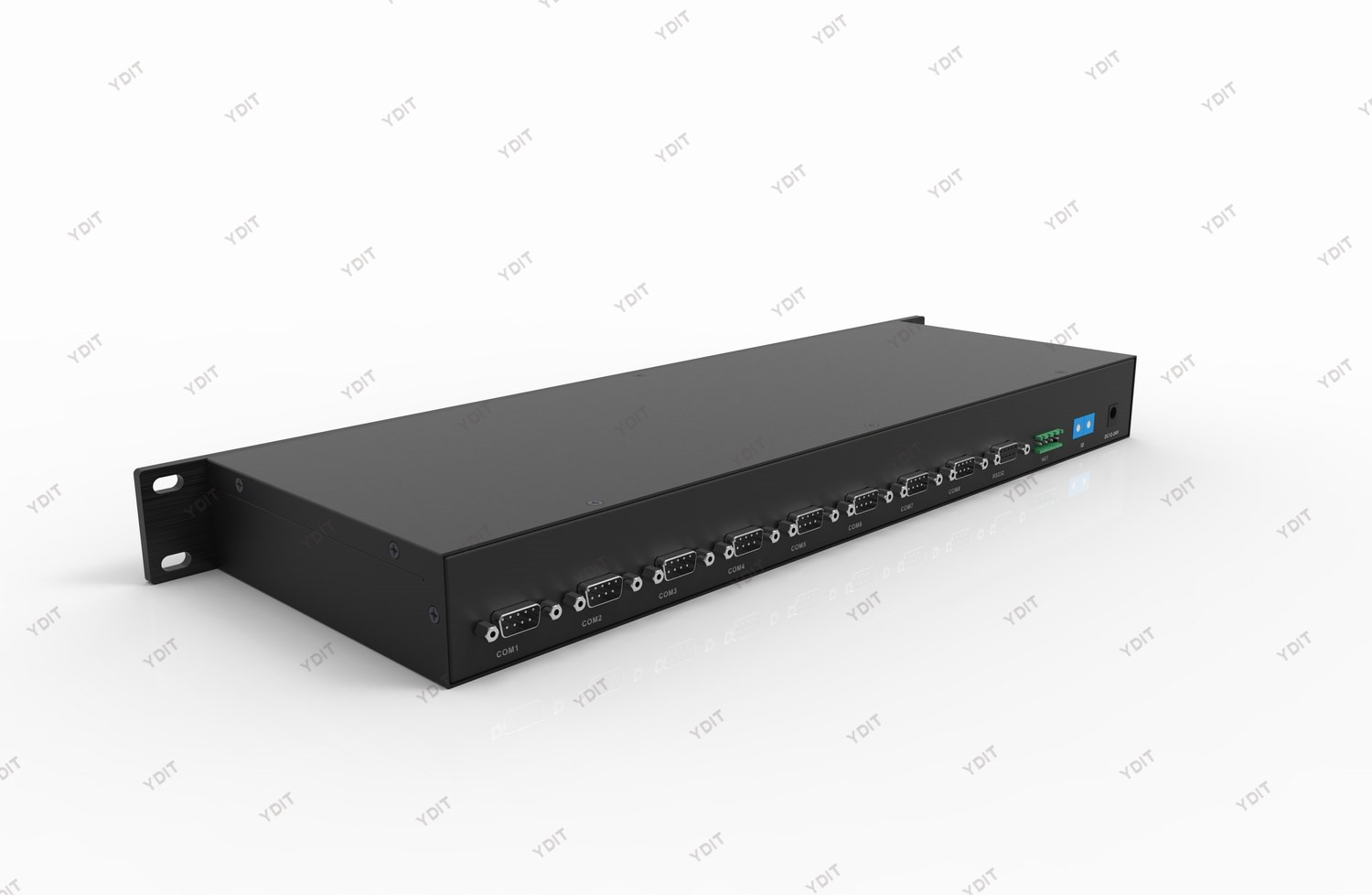

Programmable 8-channel serial port

Product Name:Programmable 8-channel serial port
Brand:YDIT 誉德
Model:YD-PW08
Features:YD-PW08 supports 8-channel serial port distributor output, communicates with the host through RS-232, converts the data sent by the host into the specified baud rate and outputs it from the corresponding serial port output port.

Description

YD-PW08 supports 8-channel serial port distributor output, communicates with the host through RS-232, converts the data sent by the host into the specified baud rate and outputs it from the corresponding serial port output port.
★ With RS-232 interface for communication with the host;
★ Eight-way DB9 interface for signal output;
★ with signal indicator;
★Support ID code setting;
★DC12V power supply mode;
★ Can be installed on any standard 19" cabinet.

Technical Parameters

Technical parameters
Static current	26mA
Static power consumption	0.85W
Working Environment	-10 °C-60 °C
Working current	35mA
Input power	DC12V
size (mm)	483L×110W×30H
weight	about 1KG

Design

Dimensions

Application effect
